Maximum Visibility. Unyielding Impact Resistance.
Precision-engineered rigid welded wire mesh sports fencing designed specifically for stadiums, athletic academies, school grounds, multi-sport turfs, and commercial sports complexes. Built by Fencecoat Engineers — Committed to Fencing Crafts & Solutions!
Engineered specifically for high-velocity ball absorption, player collision safety, acoustic dampening, and multi-decade structural rigidity.
.webp)

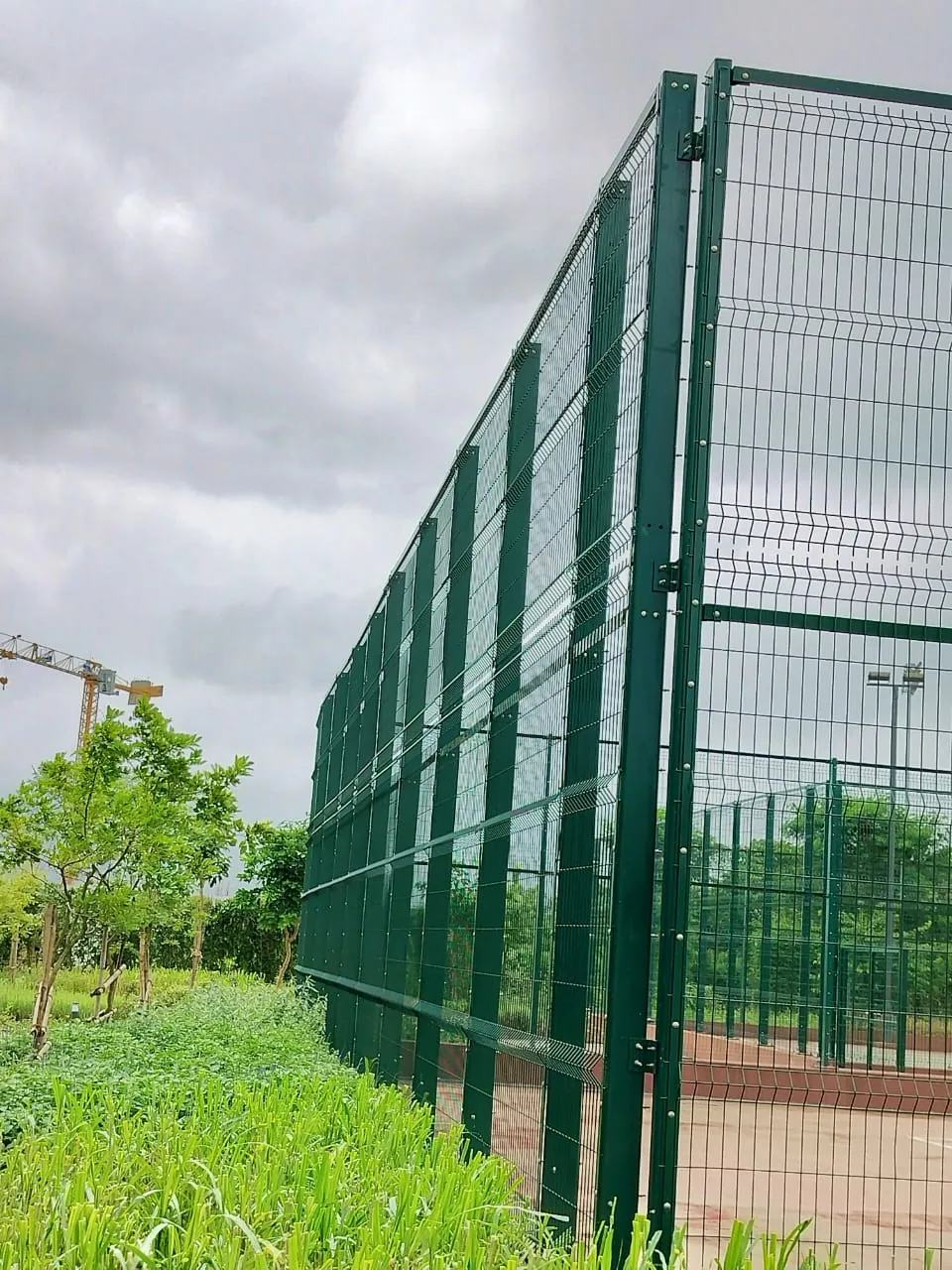

Electric-resistance welded cross-joints and heavy 4.5mm high-strength steel wires absorb aggressive football, basketball, and tennis impacts without sagging or deformative slack.
.webp)

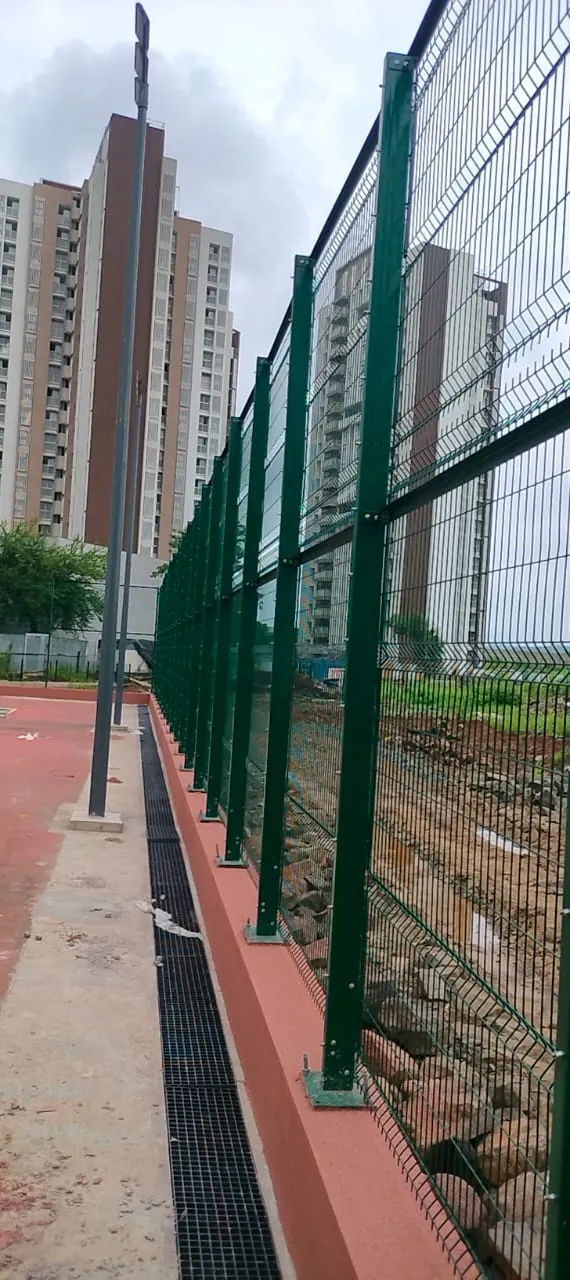

Engineered structural Rectangular (RHS) & Square (SHS) hollow steel posts with reinforced base plates and wind-struts support multi-tier panel stacking up to 19+ Ft heights.
.webp)

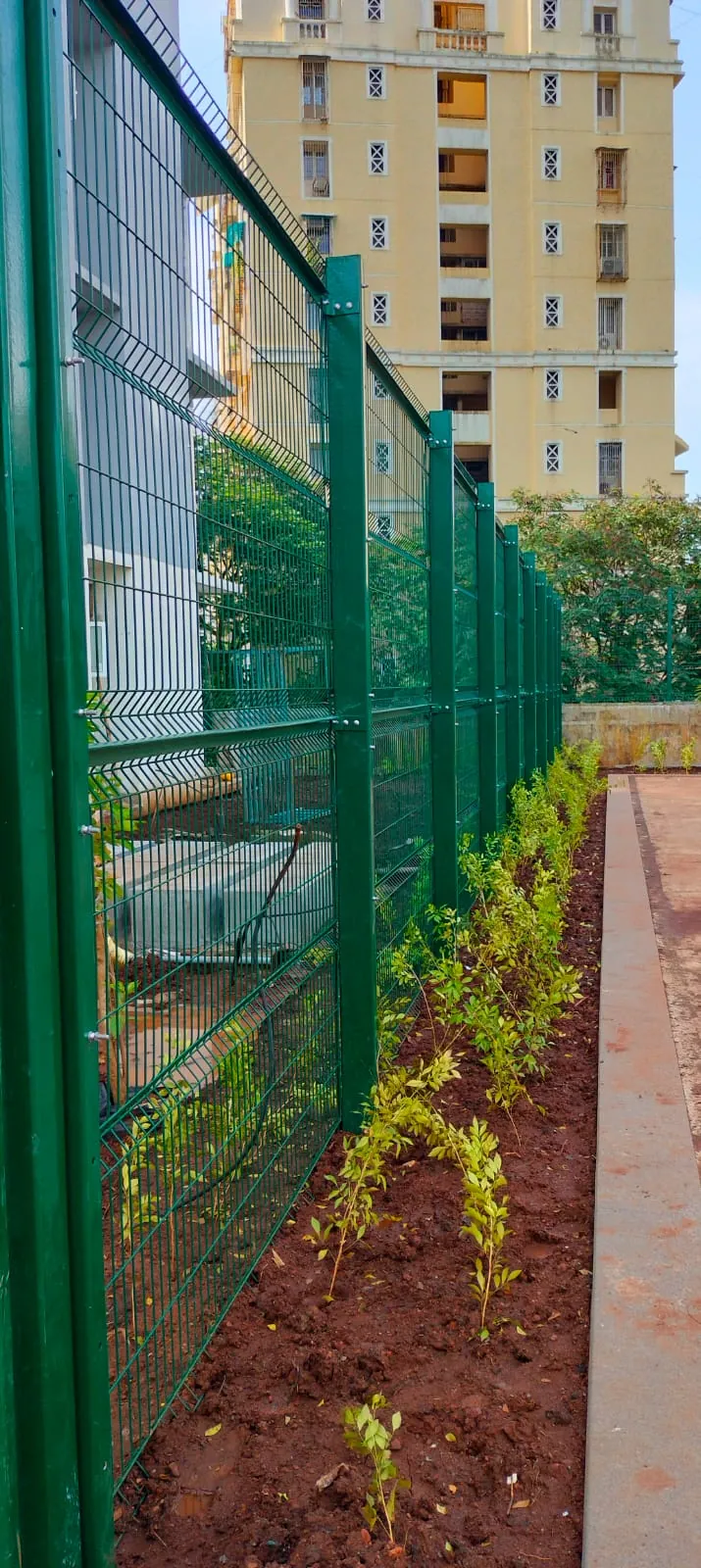

Flush-welded wire intersections coated with an architectural PP powder coating layer deliver a smooth, burr-free surface that prevents player injuries and abrasions during intense play.
.webp)

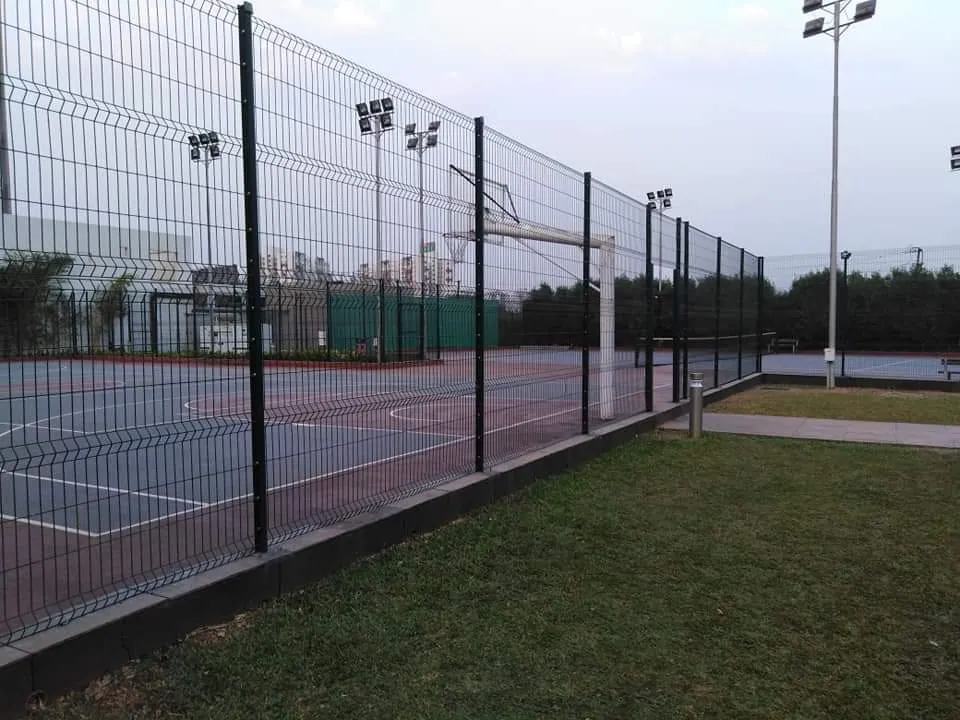

50×200 mm aperture geometry ensures crystal-clear line-of-sight for spectators and cameras, while neoprene-cushioned spider clips eliminate noisy metal vibration on ball contact.
Modular panel stacking heights engineered for diverse court boundaries, multi-sport enclosures, and maximum ball containment.
Custom Heights & Extensions: Stackable panel heights up to 8.0 meters with integrated top knotless netting brackets, floodlight pole mounts, and player entrance gates available on project order.

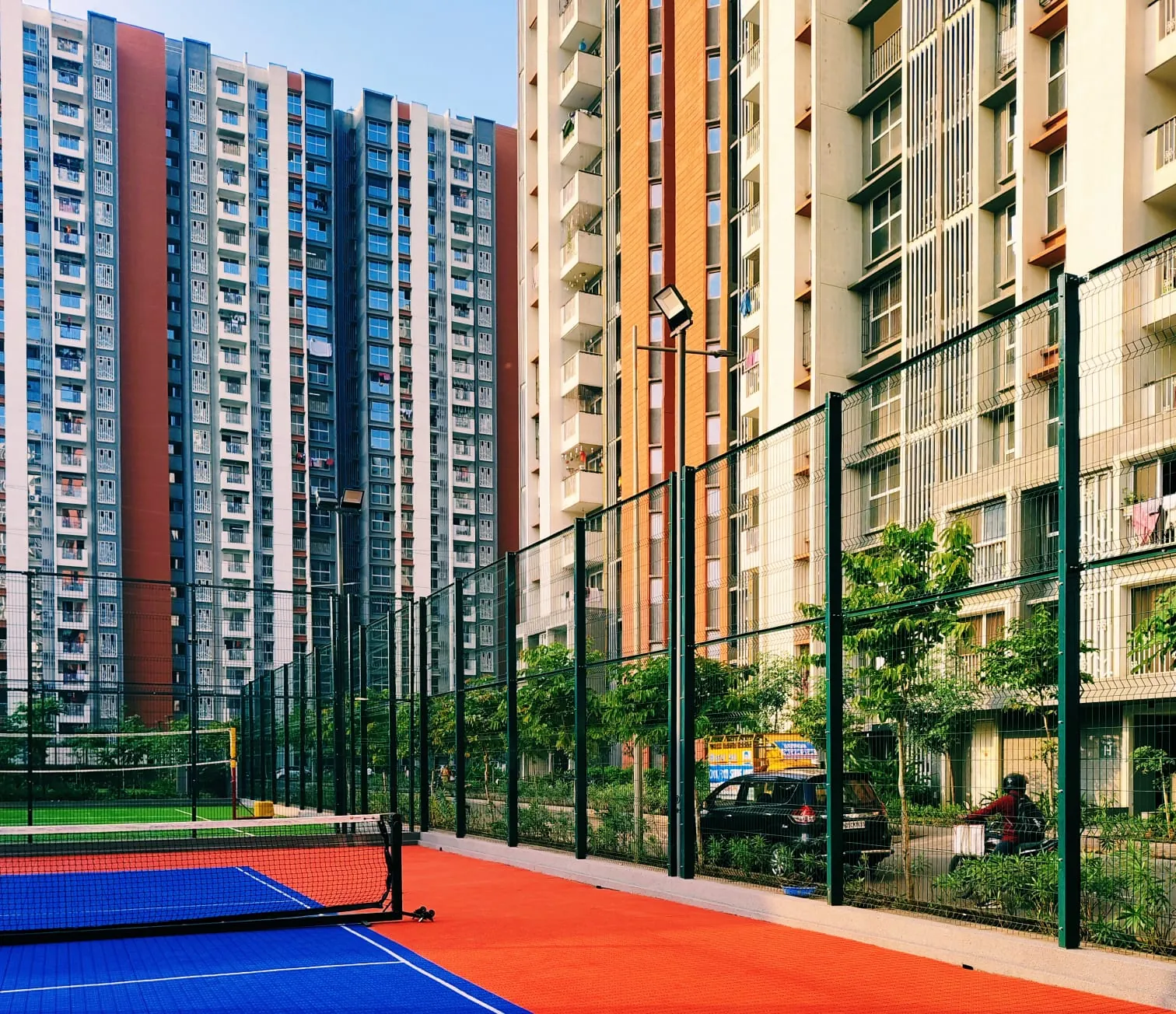

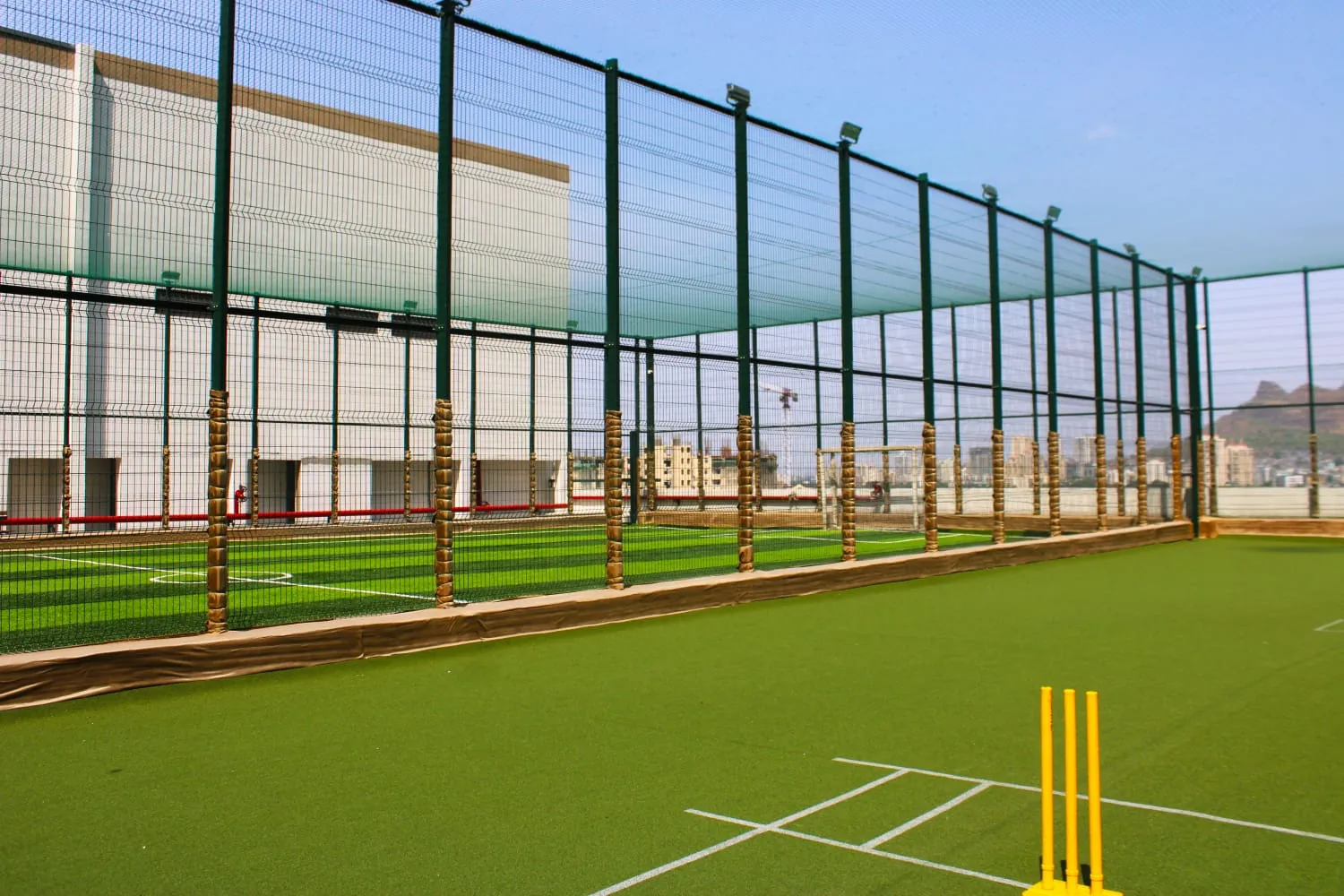

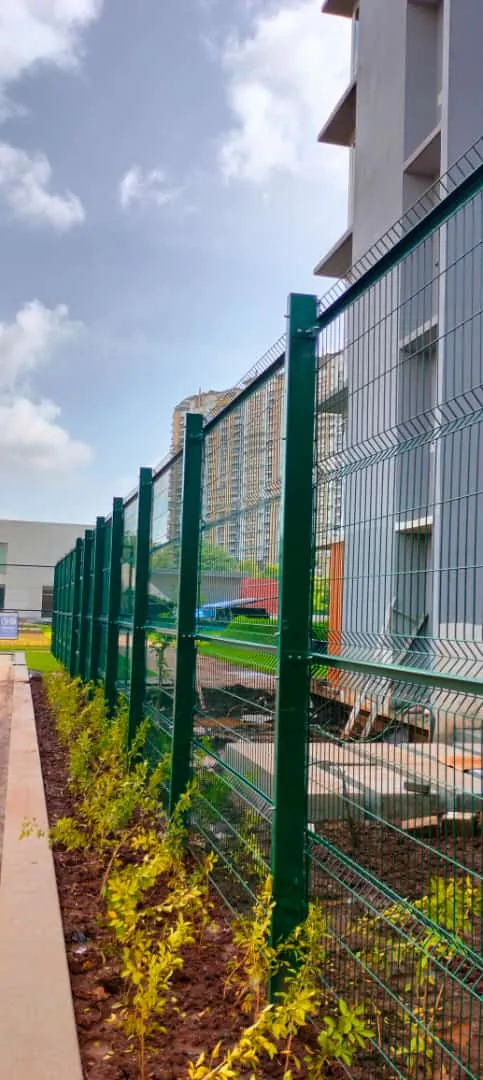

Proven performance across educational institutions, private academies, housing townships, and commercial sports complexes.
.webp)
.webp)
.webp)
Manufactured strictly under industrial guidelines for structural weld shear strength, wind load resistance, and player safety.
| Specification Parameter | Standard Technical Value |
|---|---|
| Product Name | WELD MESH SPORT FENCE |
| Product Category | WELDED MESH SPORTS ENCLOSURES |
| Mesh Aperture Size | 50 mm × 200 mm Welded Mesh Panels |
| Wire Diameter | 4.5 mm High-Strength Steel Wire |
| Standard Panel Width | 2500 mm (8 Ft 2 In) |
| Support Post System | Heavy Duty Structural RHS (60×40 mm / 80×40 mm) & SHS (60×60 mm / 80×80 mm) |
| Coating & Surface Finish | GI (Galvanized Iron) + Architectural PP Powder Coated |
| Available Standard Heights | 10 Ft (3.0 m) • 12.5 Ft (3.8 m) • 16.5 Ft (5.0 m) • 19 Ft (5.8 m) |
| Fixing & Noise Dampening | High-Strength Steel Spider Clips with Neoprene Buffer Pads |
| Application Scope | Football Turfs, Basketball, Tennis, Pickleball, Box Cricket & Stadiums |
Unlike chain link fencing which tends to stretch, sag, and rattle loudly over time when struck by balls, welded wire mesh panels are rigid, electrically resistance-welded at every intersection. They maintain taut geometric shape, eliminate rebound distortion, provide superior spectator visibility, and have a significantly longer operational lifespan.
Fencecoat Weld Mesh Sport Fencing utilizes dedicated spider fixing clips fitted with dense neoprene acoustic buffer pads. These absorb ball kinetic energy and cushion the contact point between the mesh panel and the steel support post, virtually eliminating metal clatter during play.
For school playgrounds and general boundary demarcation, 10 Ft (3.0 m) is standard. For tennis, basketball, and pickleball courts, 12.5 Ft (3.8 m) provides optimal ball containment. For multi-sport academies and commercial football/box cricket turfs, 16.5 Ft (5.0 m) and 19 Ft (5.8 m) are recommended for total ball retention.
Our tall sports fencing systems utilize heavy-gauge structural RHS/SHS posts with reinforced footings and angled wind-brace struts engineered for local wind velocity ratings. The open 50x200mm mesh aperture allows wind to pass freely through the structure, drastically lowering the drag coefficient compared to solid barriers.
Fencecoat fencing systems and technical specifications can be customized to match your specific project requirements, site terrain, height configurations, wire thickness, and finish preferences.
Request Custom SpecificationsContact Fencecoat Engineers today for court layout consultations, CAD specifications, and competitive turnkey pricing.
