When Security Matters Most.
High-strength anti-climb welded mesh fencing engineered for secure perimeters, critical infrastructure, smart city developments, creeper plant integration, and luxury estate boundaries.
Uncompromising perimeter protection engineered for high-risk zones, infrastructure, and architectural spaces.
.webp)

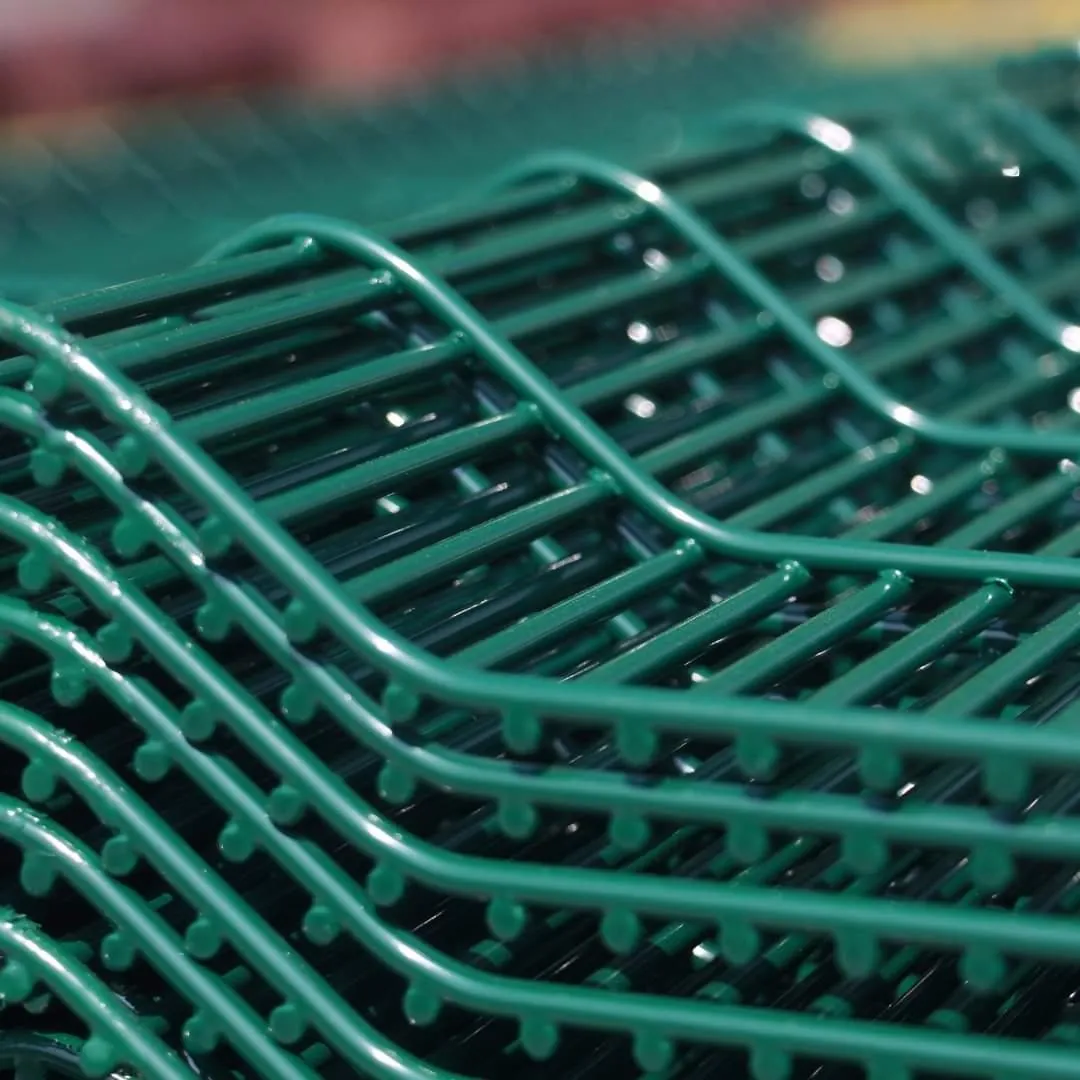

Dense 76.2×12.7 mm aperture prevents toe & finger holds while resisting heavy mechanical wire cutters and shears.
.webp)

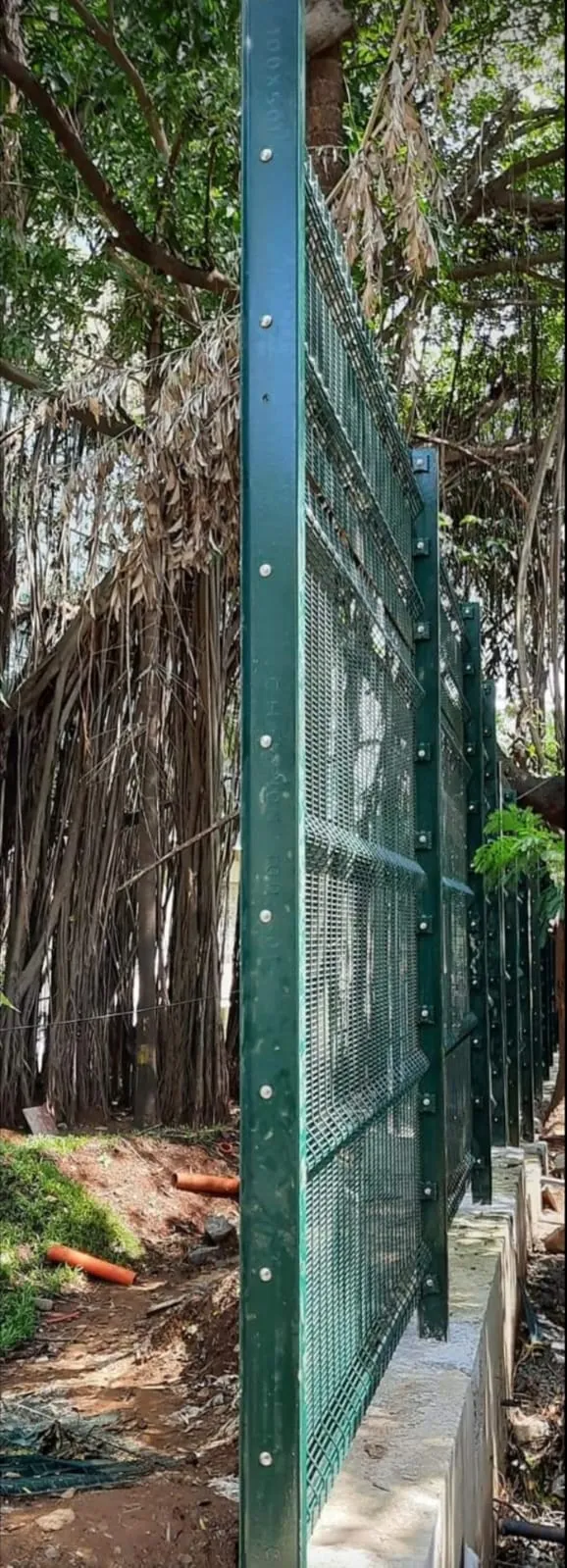

Structural H Profile and SHS steel posts with tamper-proof clamp bars provide maximum resistance against physical breach.
.webp)

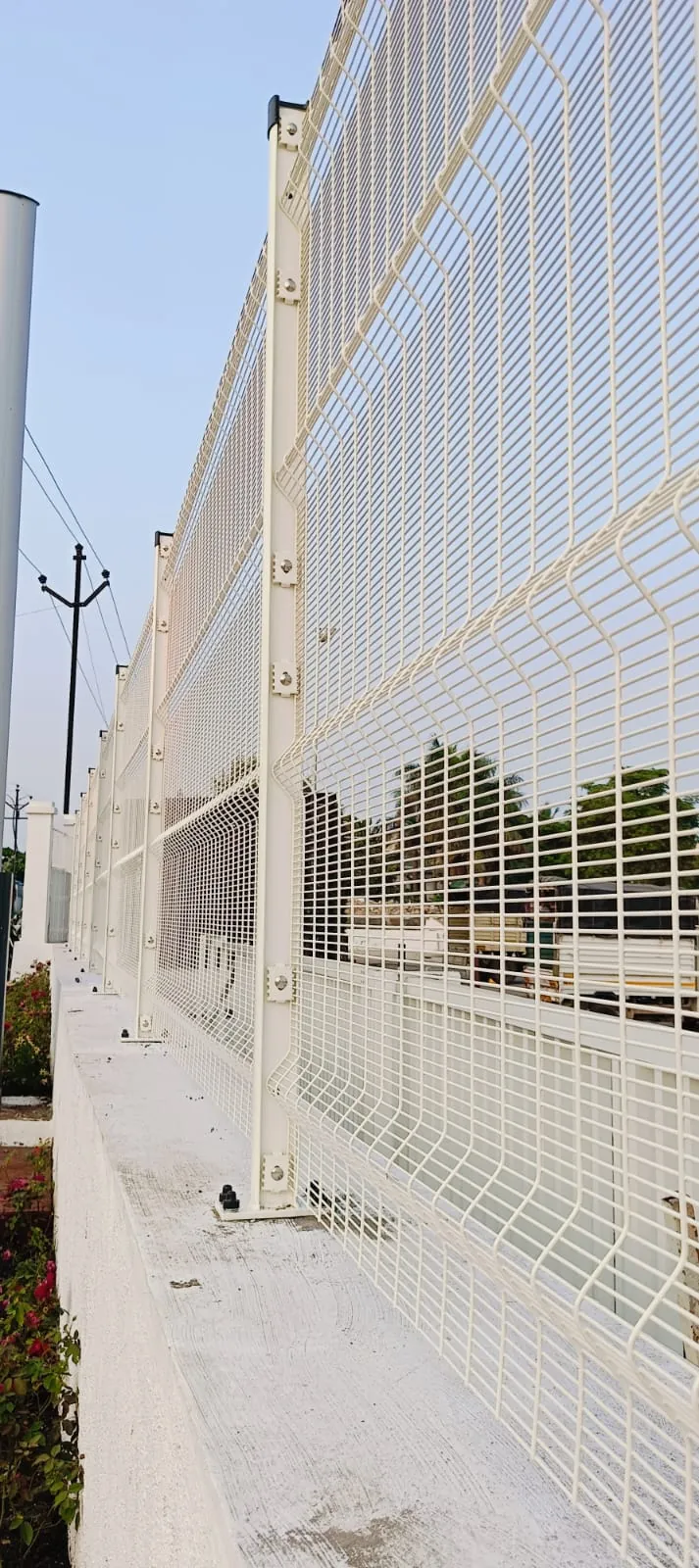

Galvanized Iron core with high-grade PP Powder Coating (Forest Green / Anthracite Grey) delivers multi-decade rust immunity.
.webp)
High-density stacked panel configurations engineered for enhanced height boundaries and robust security perimeters.
Standard height configurations tailored for residential boundaries, smart urban zones, creeper walls, and maximum-security perimeters.

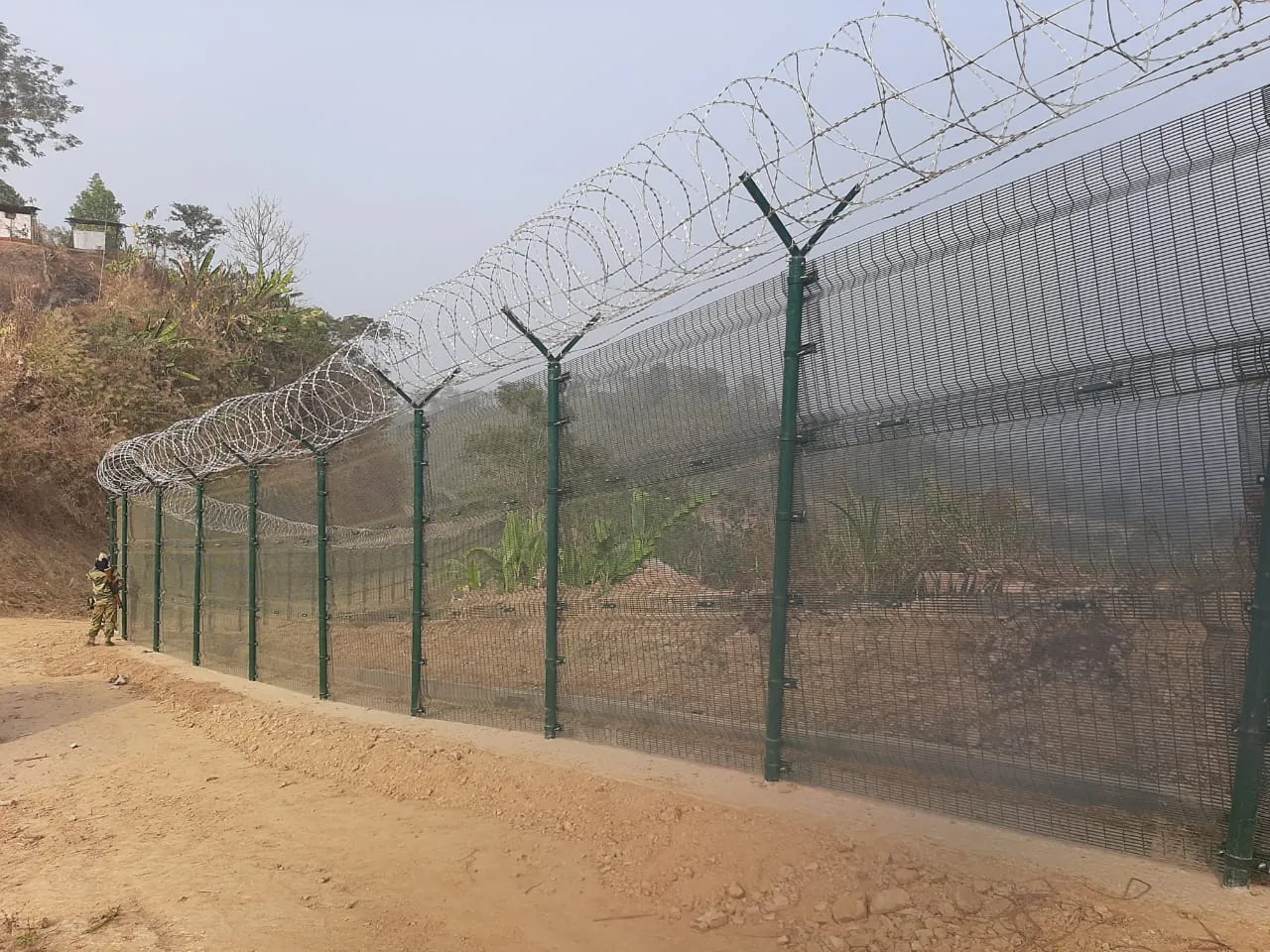

Custom post thickness, razor coil extensions, and RAL powder coat colors available on request.

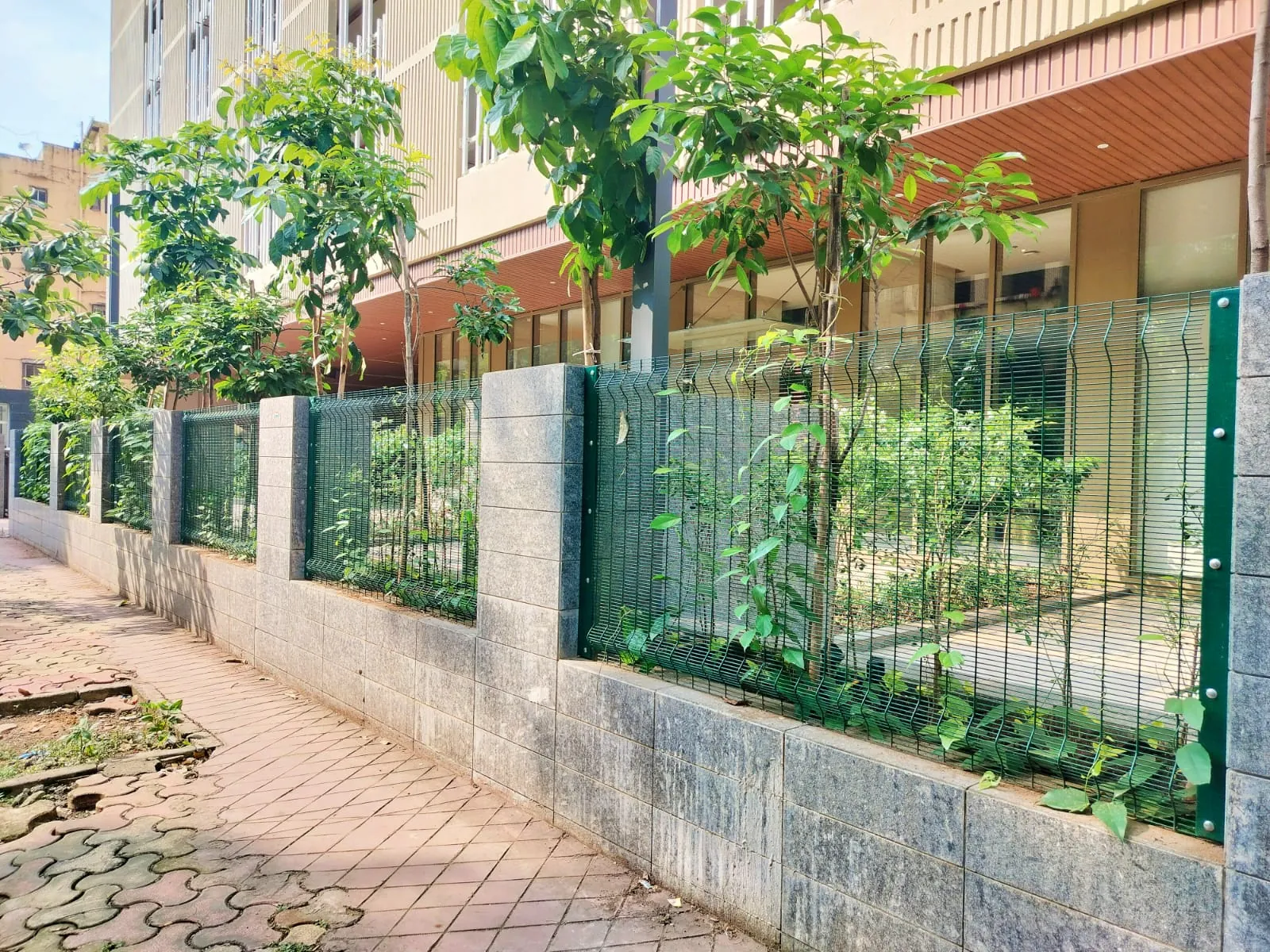

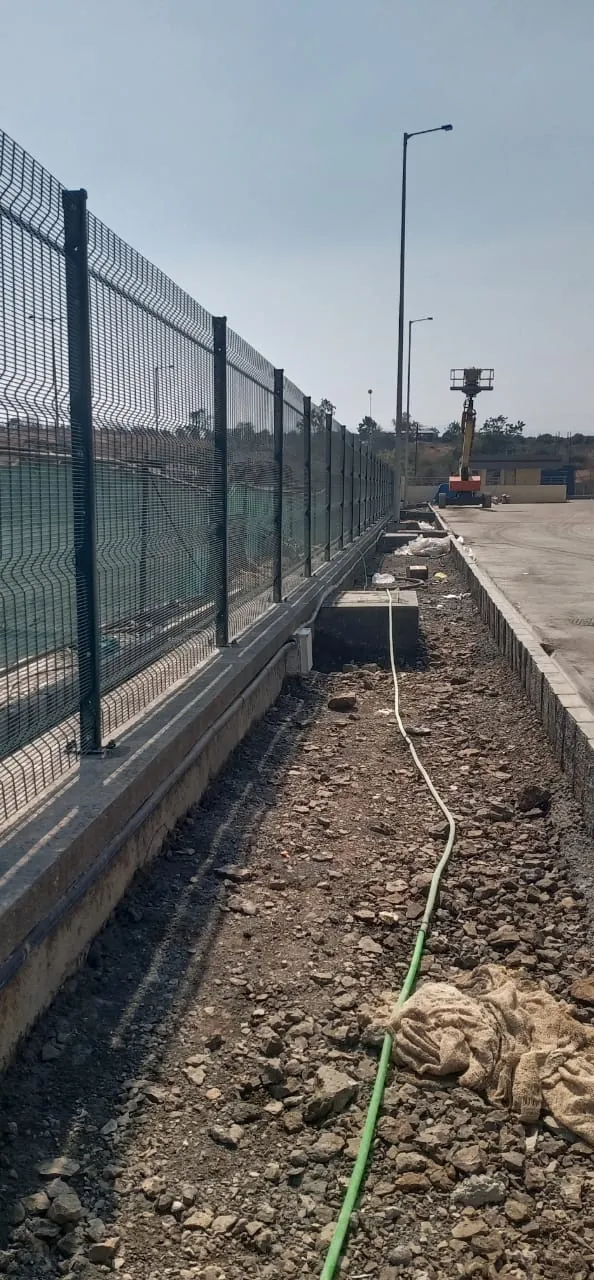

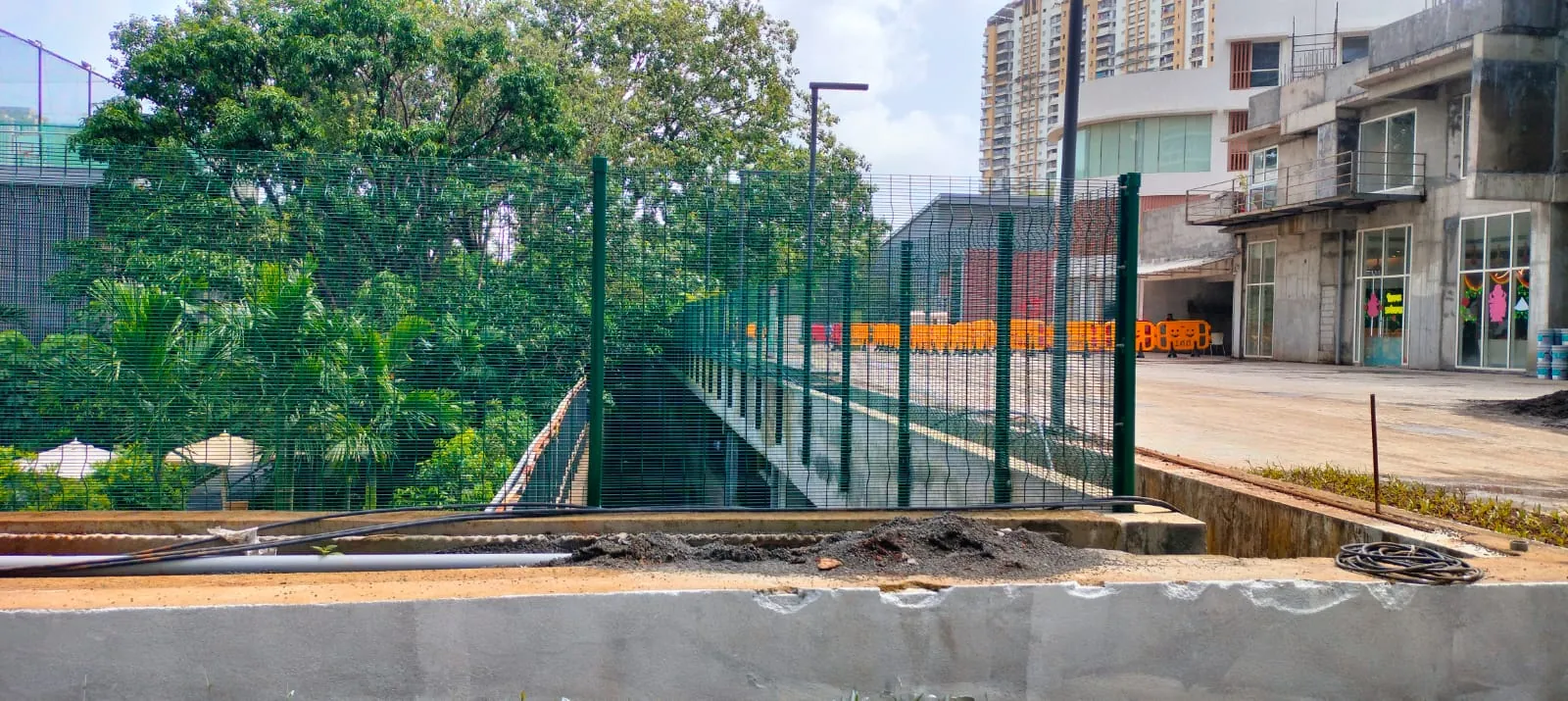

Trusted across luxury real estate, smart city projects, green walls, and secure facilities.
.webp)
.webp)
.webp)
.webp)
Manufactured strictly under industrial guidelines for anti-climb density and impact strength.
| Specification Parameter | Standard Technical Value |
|---|---|
| Product Model | UNICO Shield Anti-Climb Welded Mesh Fencing |
| Mesh Size (Aperture) | 76.2 mm × 12.7 mm Anti-Climb Aperture |
| Wire Thickness | 4.0 mm Vertical | 3.0 mm Horizontal Steel Wire |
| Standard Panel Width | 2500 mm (8 Ft 2 In) |
| Support Post System | H Profile / Heavy SHS / RHS Posts with Clamp Bars |
| Coating Finish | GI (Galvanized Iron) + PP Powder Coated |
| Available Standard Heights | 4.2 Ft (1.3m) | 5.2 Ft (1.6m) | 6.2 Ft (1.9m) | 8.2 Ft (2.5m) |
| Security Features | Anti-Climb, Anti-Cut, Concealed Tamper-Proof Fasteners |
The 12.7mm vertical aperture is too narrow for human fingers or shoes to gain a foothold. Additionally, the close wire spacing prevents standard wire cutters or bolt cutters from inserting between the bars.

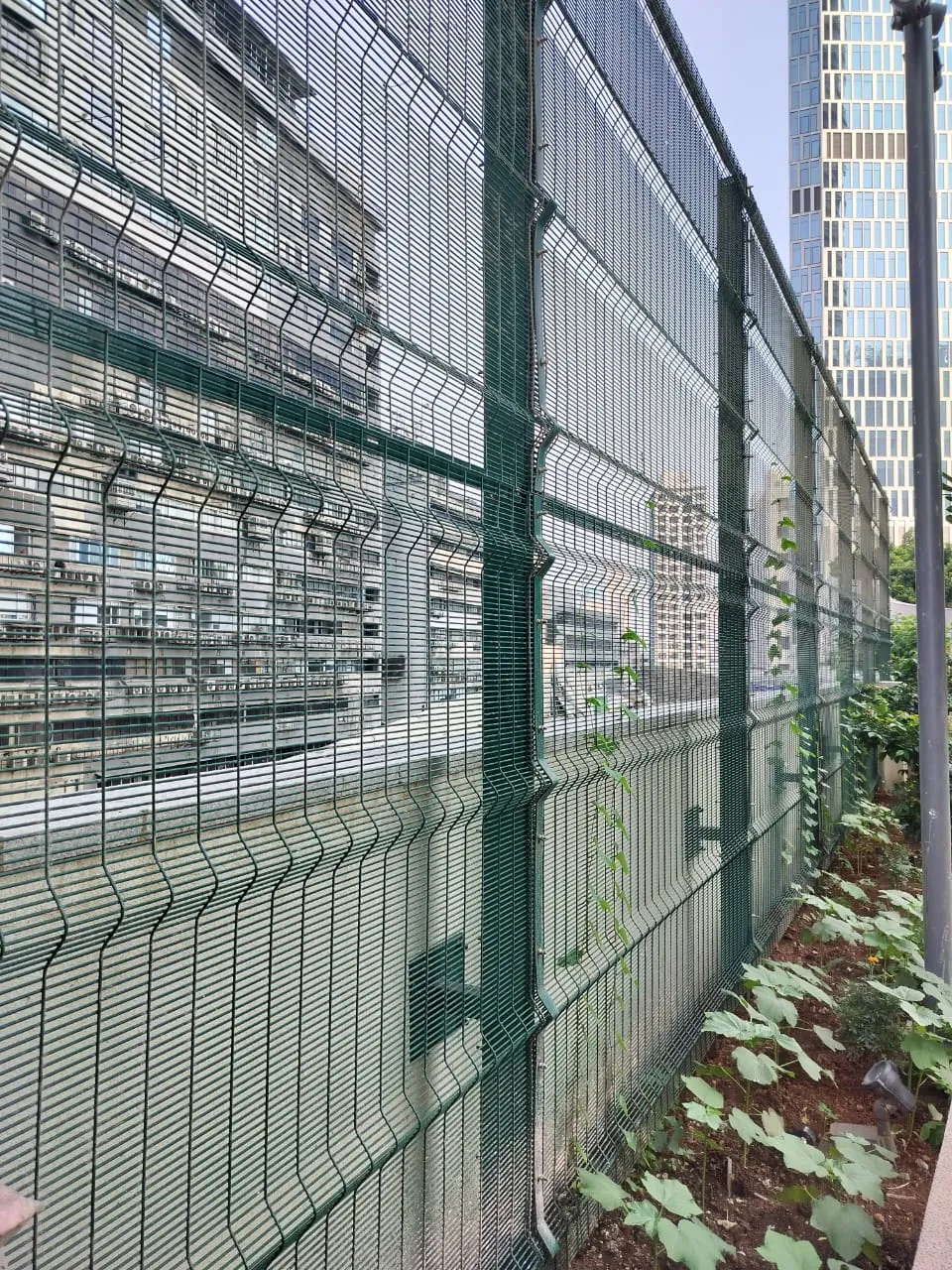

Yes. UNICO Shield's dense mesh grid serves as an ideal trellis for ivy, bougainvillea, and climbing plants, transforming rigid security fencing into a lush green living wall over time.
For high-security perimeters, H Profile posts with full-length steel cover plates and shear-off safety bolts are recommended to eliminate vulnerability at panel connection points.
The hot-dip galvanized zinc layer protects the steel core from electrochemical corrosion, while the thermo-cured PP powder topcoat provides UV protection and chemical resistance against coastal humidity and acid rain.
Fencecoat fencing systems and technical specifications can be customized to match your specific project requirements, site terrain, height configurations, wire thickness, and finish preferences.
Request Custom SpecificationsContact Fencecoat's engineering team today for technical guidance, CAD drawings, and custom pricing estimates.
