Maximum Security. Zero Compromise.
Heavy-duty steel fencing engineered to protect critical spaces and high-security perimeters. Built by Fencecoat Engineers — Committed to Fencing Crafts & Solutions!
Designed to deliver impenetrable perimeter security with high physical deterrence and exceptional structural longevity.
.webp)

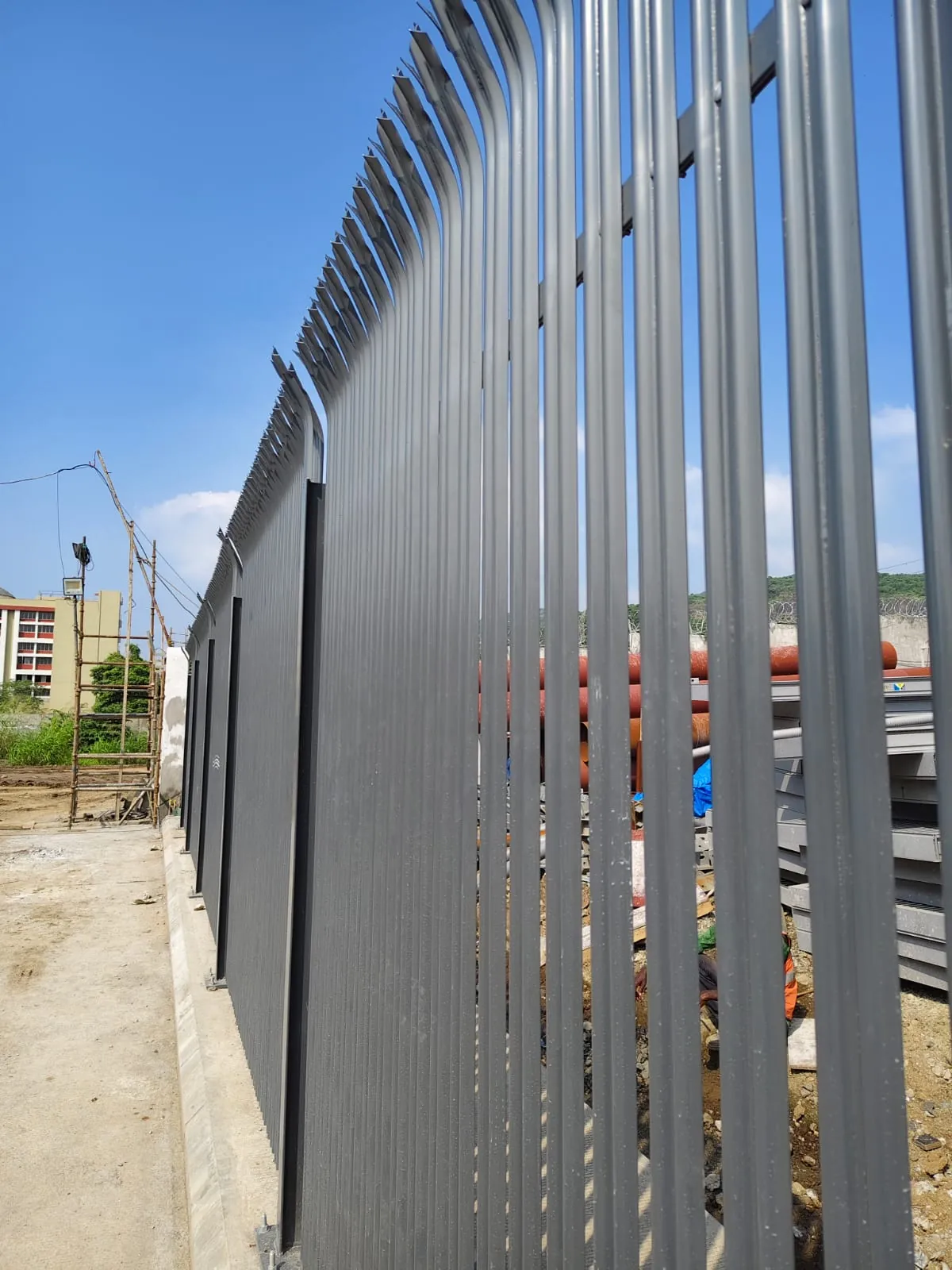

Specially corrugated W-profile pales provide high torsional rigidity, anti-grip surfaces, and triple-pointed tips for maximum anti-climb protection.
.webp)

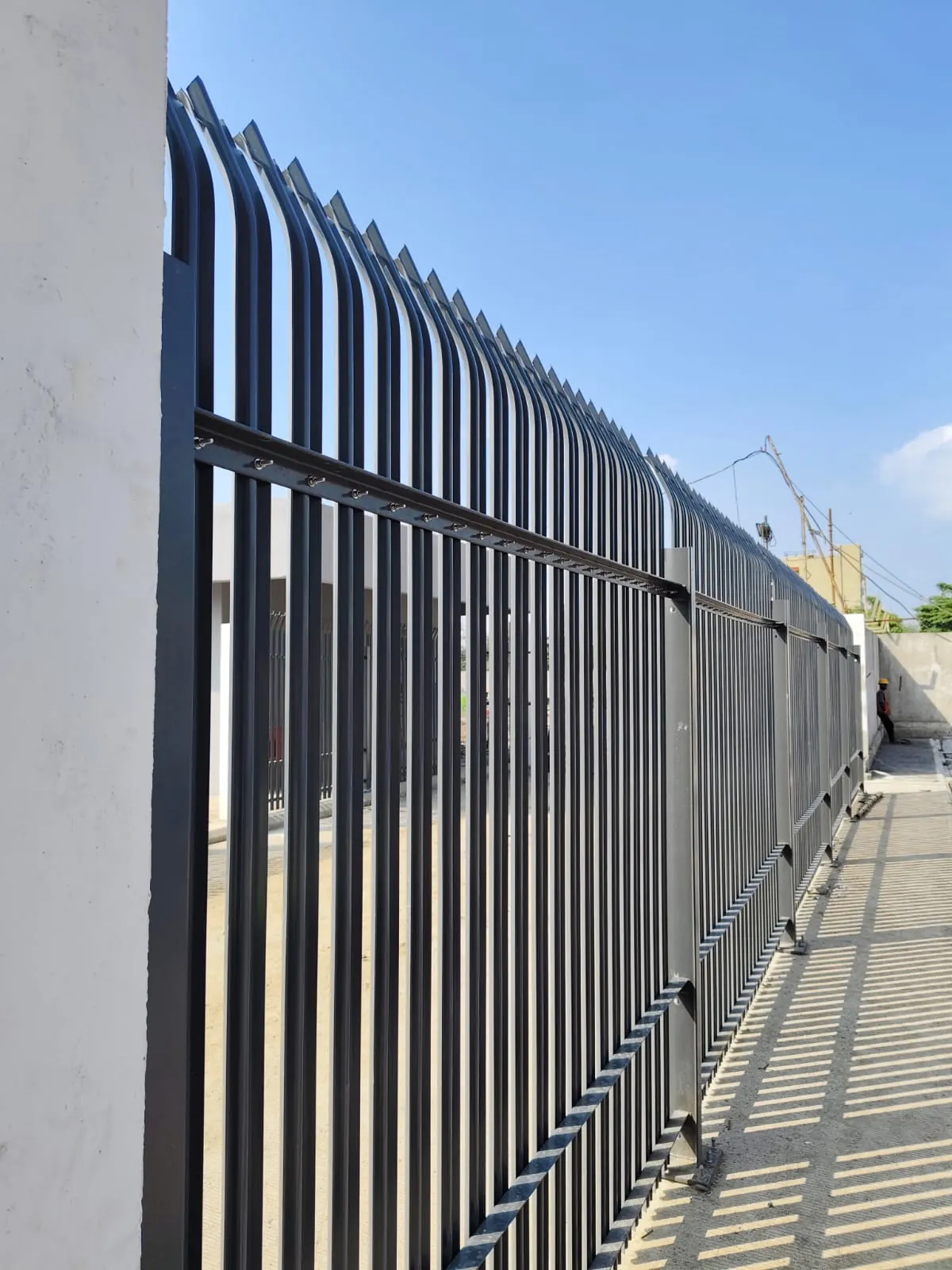

Structural SHS and heavy I-beam posts with internal reinforcement deliver unyielding foundation support against impact and forced entry attempts.
.webp)

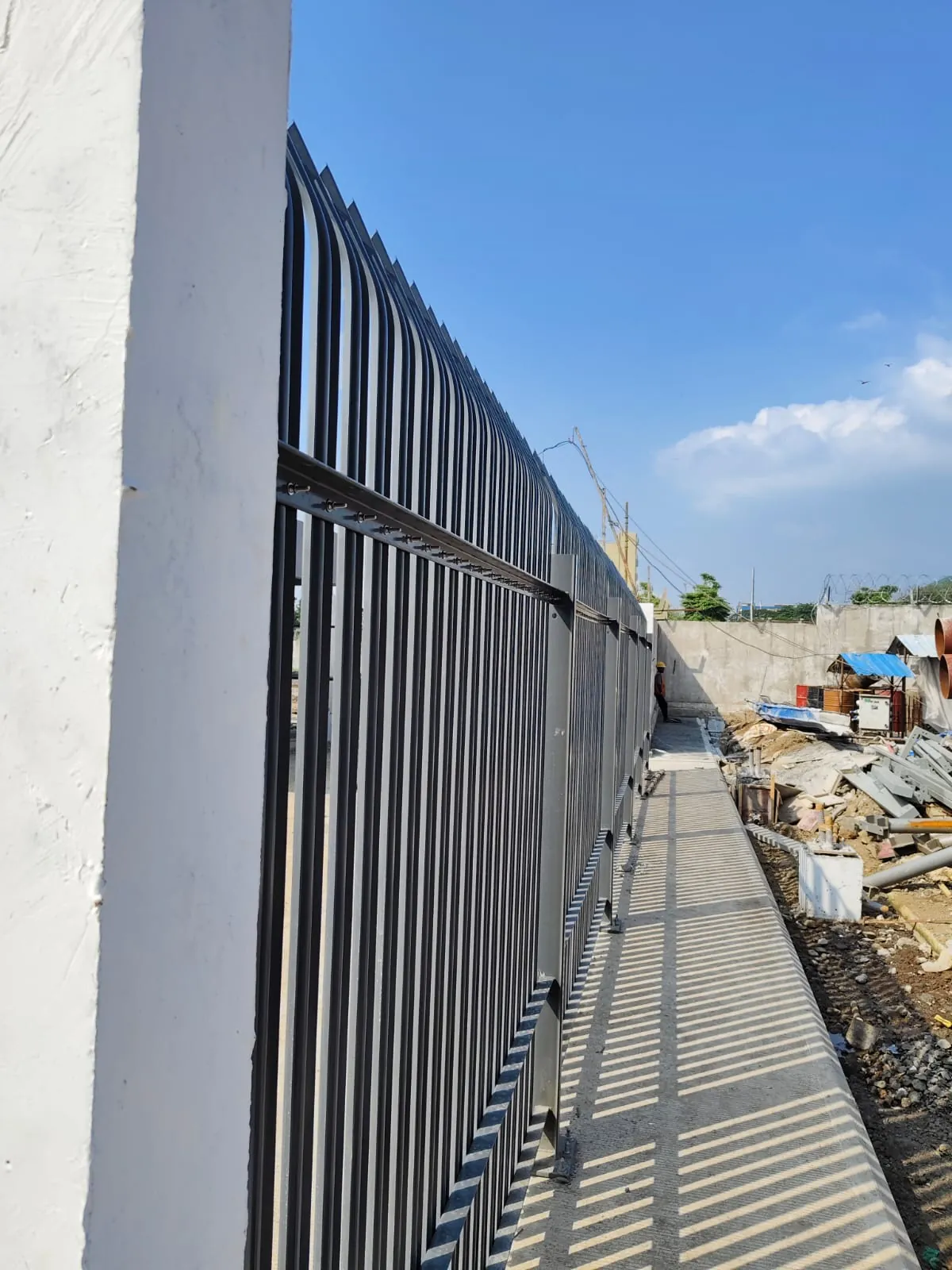

Hot-dip galvanized steel core bonded with electrostatically applied PP Powder Coating (Green / Grey) provides zero-maintenance corrosion immunity.
.webp)

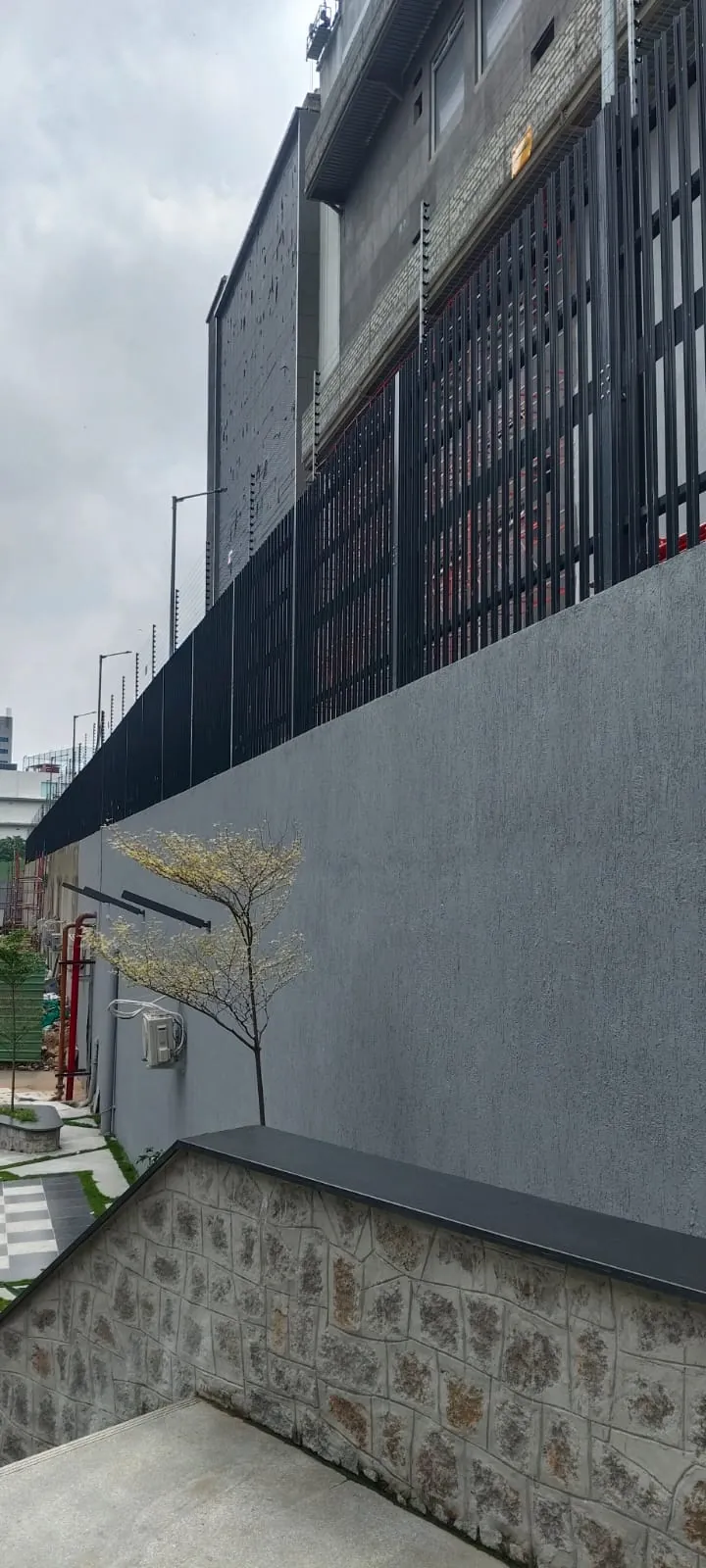

Heavy-duty shear-off security bolts and rivets snap upon torquing, leaving no unboltable surface to eliminate unauthorized dismantling.
Standard height options engineered to suit industrial perimeters, critical installations, and high-security developments.
Custom pale profiles (Triple Pointed, Round & Notched), custom heights, and base-plate mounting options available on request.

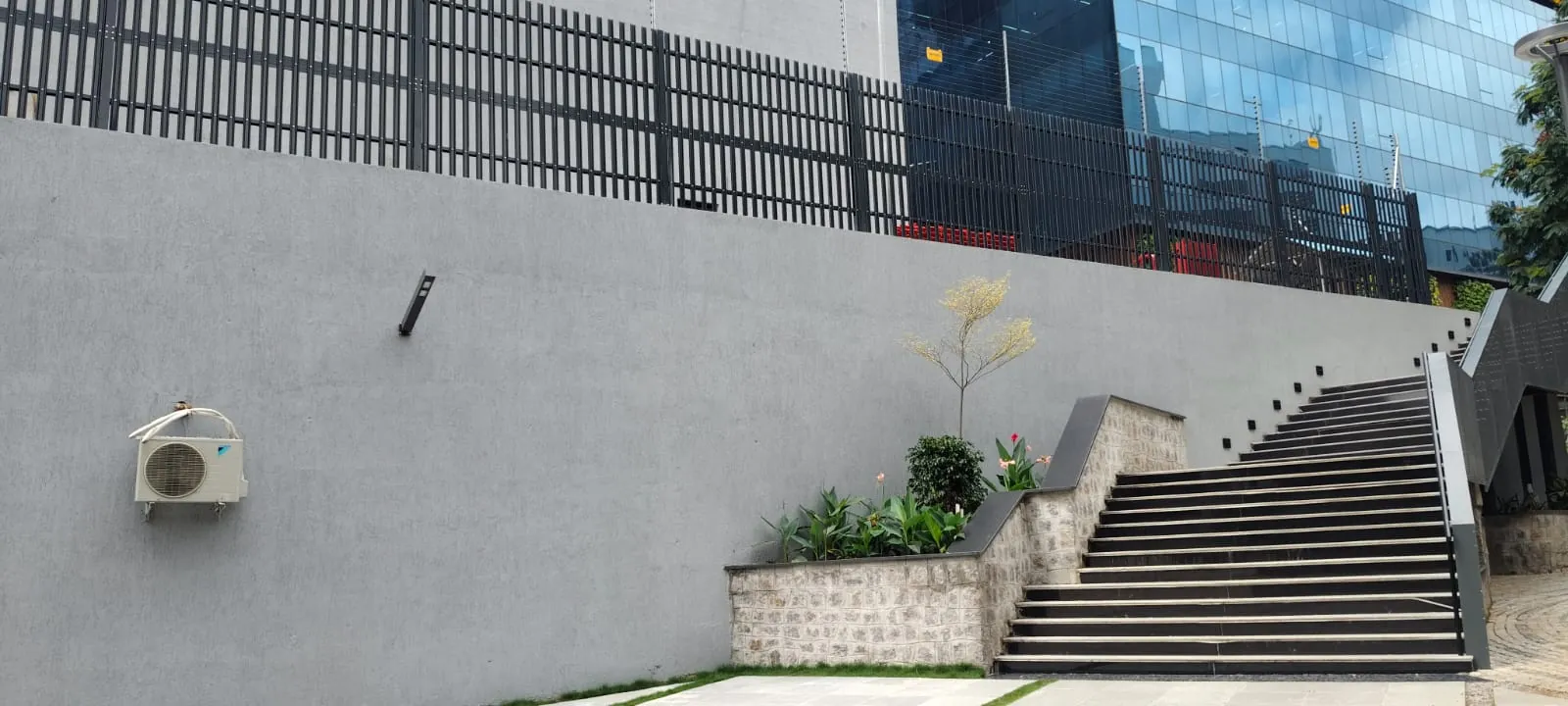

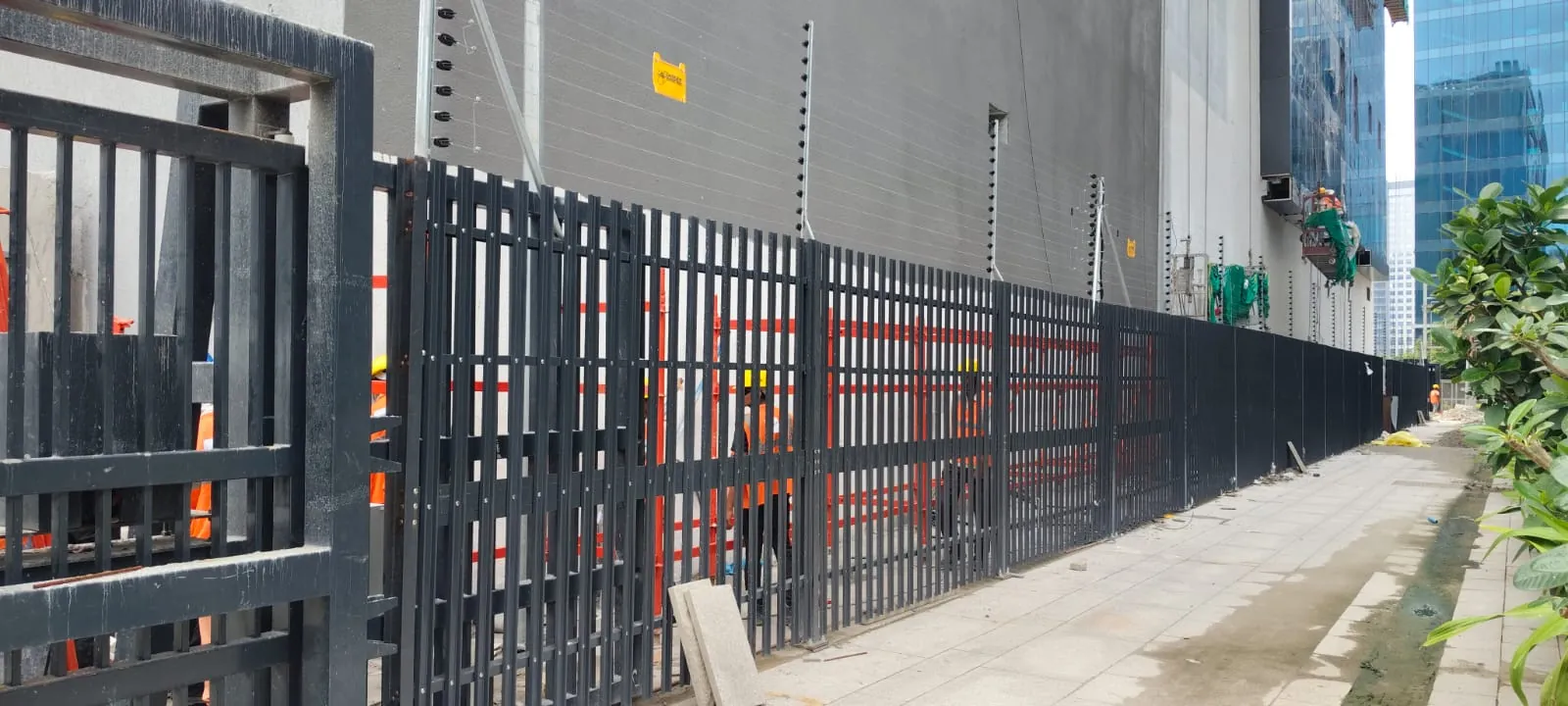

Tailored for heavy-duty industrial zones, critical infrastructure, smart townships, and premium infra projects.
.webp)
.webp)
Engineered and manufactured strictly under heavy-duty industrial specifications for utmost strength and anti-intrusion capability.
| Specification Parameter | Standard Technical Value |
|---|---|
| Product Model | Palisade Steel High-Security Fence |
| Pale Profile | W-Shape Steel Pales (Anti-Climb & Anti-Cut) |
| Support System | SHS (Square Hollow Section) / I-Beam Posts with Reinforcement |
| Construction & Material | Heavy-Duty Industrial Grade Steel |
| Horizontal Rails | Heavy-Duty Rolled Angle Steel Rails (Top & Bottom) |
| Coating & Surface Finish | GI (Galvanized Iron) + PP Powder Coating |
| Available Standard Heights | 4 Ft (1.2 m) · 5 Ft (1.5 m) · 6 Ft (1.8 m) · 8 Ft (2.4 m) |
| Fixing & Fasteners | Tamper-Resistant Shear-Off Security Cone Nuts & Rivets |
| Suitable Applications | Industrial Areas, Data Centres, Premium Township Projects, Infra Projects |
The W-profile pale design is cold-formed to provide corrugated structural strength that resists physical bending, prying, and heavy impact. Its curved geometry denies foothold or handhold for climbing, and the triple-pointed top acts as a formidable anti-scaling deterrent.
We supply high-strength SHS (Square Hollow Section) posts as well as heavy I-Beam structural posts engineered with reinforced gussets. These can be anchored using heavy-duty base plates to concrete compound walls or concreted directly into ground footings.
Our dual-layer protection begins with a hot-dip galvanized (GI) zinc coating that shields the steel from rust, topped with an architectural-grade PP Powder Coating (available in Green and Grey). This delivers superior UV stability, scratch resistance, and decades of maintenance-free service.
For residential township boundaries and realty developments, 6 Ft 6 In (2.0 m) provides excellent visual demarcation and security. For industrial areas, warehouses, and data centres, 8 Ft (2.4 m) and 10 Ft (3.0 m) are the industry benchmarks for maximum perimeter protection.
Fencecoat fencing systems and technical specifications can be customized to match your specific project requirements, site terrain, height configurations, wire thickness, and finish preferences.
Request Custom SpecificationsContact Fencecoat Engineers today for technical consultations, customized layout drawings, and competitive project estimates.
